technical-information-wavelengthmeter-wf6-series
点击下载
technical-information-wavelengthmeter-wf7-series
点击下载
technical-information-wavelengthmeter-wr6-200-series
点击下载
technical-information-wavelengthmeter-wr6-600-series
点击下载
technical-information-wavelengthmeter-wr7-30-series
点击下载
technical-information-wavelengthmeter-wr7-60-series
点击下载
technical-information-wavelengthmeter-wr8-2
点击下载
technical-information-wavelengthmeter-wr8-10
点击下载
technical-information-wavelengthmeter-ws5-series
点击下载
technical-information-wavelengthmeter-ws6-200-series
点击下载
technical-information-wavelengthmeter-ws6-600-series
点击下载
technical-information-wavelengthmeter-ws7-30-series
点击下载
technical-information-wavelengthmeter-ws7-60-series
点击下载
technical-information-wavelengthmeter-ws8-2
点击下载
technical-information-wavelengthmeter-ws8-10
点击下载
量子计算机
安全量子通信
原子钟时间精密测量
激光诊断
产品系列 |
| 测量范围可选 | 绝对精度 | 测量速度 |
Standard Series(WS) | WS8-2 | (330-1180nm) | 2MHz | Up to 1000Hz |
WS8-10 | (248-1180nm) (330-1180nm) (630-1750nm) | 10MHz | Up to 1000Hz | |

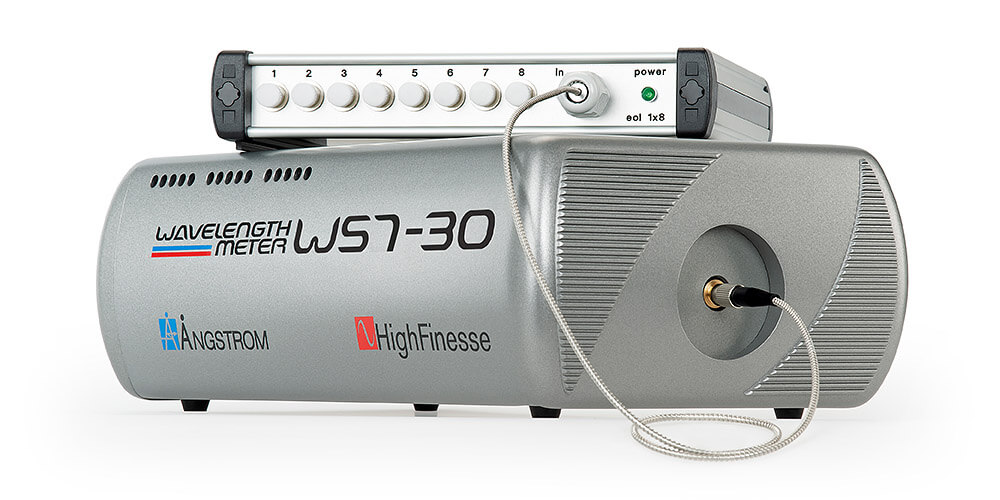

WS7-30 | (248-1180nm) (330-1180nm) (630-1750nm) (1000-2250nm) | 30MHz | Up to 500Hz | |
WS7-60 | (192-800nm) (248-1180nm) (330-1180nm) (330-1750nm) (500-2250nm) | 60MHz | Up to 500Hz
| |
WS6-200 | (192-800nm) (248-1180nm) (330-1180nm) (330-1750nm) (500-2250nm) | 200MHz | Up to 500Hz/1.8KHz | |
WS6-600 | (192-800nm) (248-1180nm) (330-1180nm) (330-1750nm) (500-2250nm) | 600MHz | Up to 950Hz/1.8KHz | |

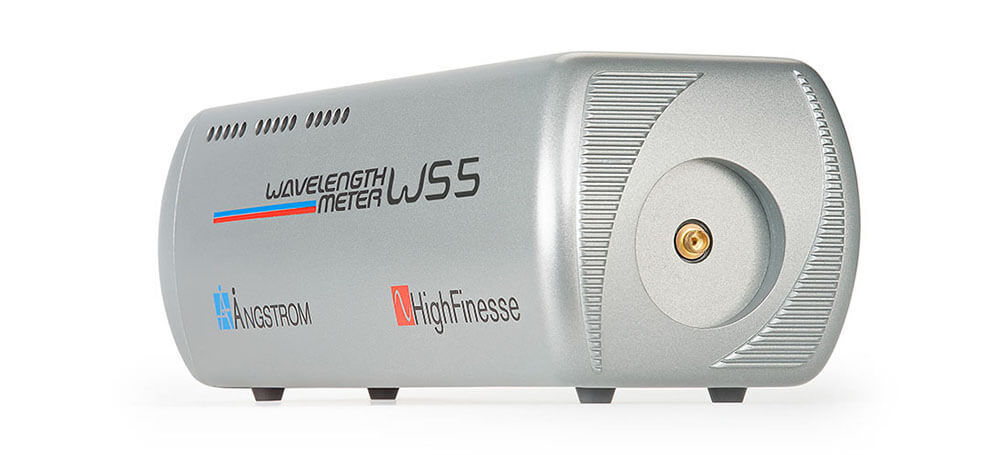

WS5 | (192-800nm) (248-1180nm) (330-1180nm) (330-1750nm) (500-2250nm) | 3000MHz | Up to 950Hz/1.8KHz | |

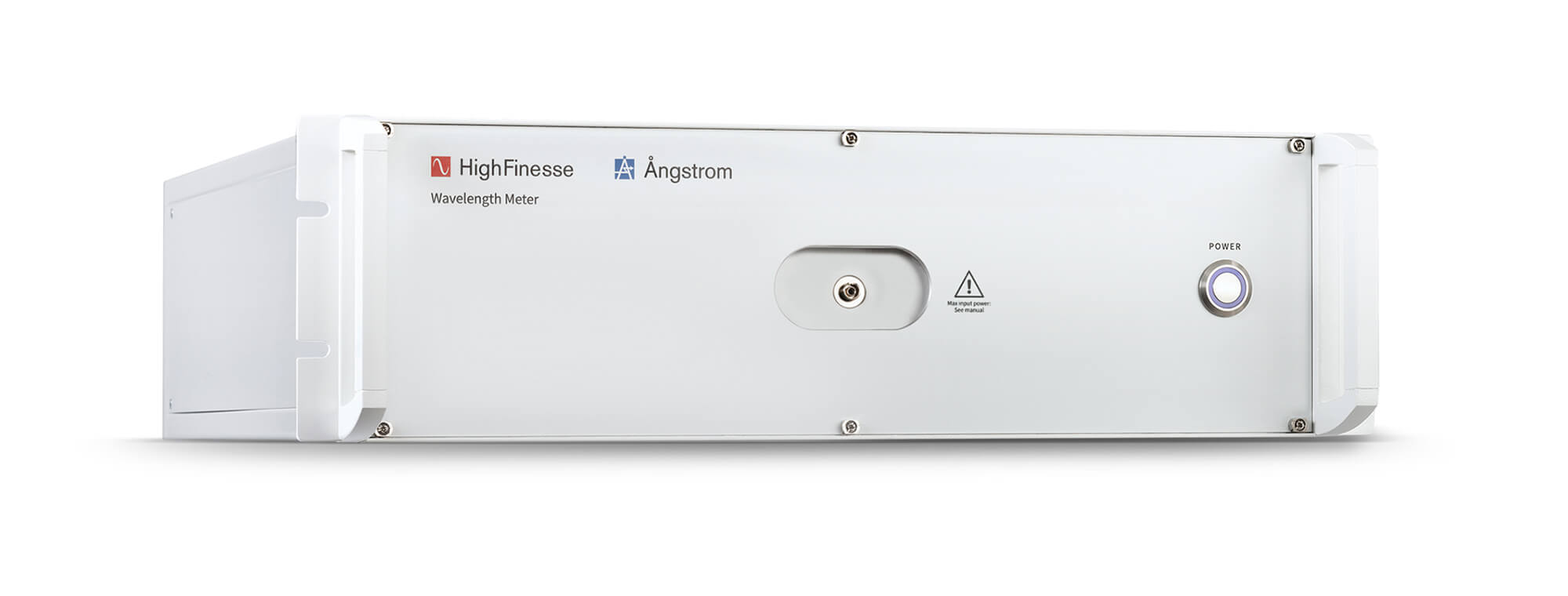

Rack Series(WR) | WR6-600 | (330-1180nm) (248-1180nm) (192-800nm) (330-1750nm) | 600MHz | Up to 1500Hz/950Hz |
WR6-200 | (330-1180nm) (248-1180nm) (192-800nm) (330-1750nm) | 200MHz | Up to 1500Hz/950Hz/500Hz | |
WR7-60 | (330-1180nm) (248-1180nm) (192-800nm) (520-1750nm) | 60MHz | Up to 500Hz | |
WR7-30 | (330-1180nm) (248-1180nm) (630-1750nm) | 30MHz | Up to 500Hz | |
WR8-10 | (330-1180nm) (630-1750nm) | 10MHz | Up to 1000Hz | |
WR8-2 | (330-1180nm) | 2MHz | Up to 1000Hz | |
Fast Series(WF) | WF6 | (380-1064nm) (980-1650nm) (1400-2600nm) | 200MHz | Up to 76KHz |
WF7 | (1400-2600nm) | 60MHz | Up to 38KHz |
HighFinesse是全球第一家使用斐索干涉仪技术的波长计德国厂商，有超过20年的历史，也是世界上最精确的商用波长厂家之一。HighFinesse波长计适用于脉冲或连续激光源波长测量，系统采用斐索干涉原理，具有操作简便，稳定性好，灵敏度高等特点。
如有意向购买产品或者相关技术咨询，请联系我们
